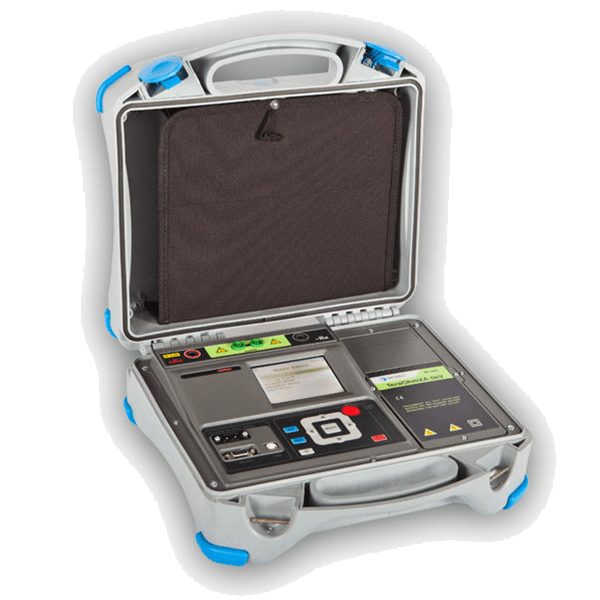

Metrel MI3205 TERAOHM XA 5 KV HV Insulation Testers

CEPCO Sales are official distributors for MI3205 TERAOHM XA 5 KV insulation testers in Saudi Arabia.

Metrel Brand Saudi Arabia

Description

MEASURING FUNCTIONS

  • Insulation Measurement;
  • Diagnostic Test (PI, DAR, DD);
  • Step Voltage Test;
  • Withstanding Voltage Test (DC) up to 5 kV;
  • Voltage and frequency measurement up to 550 V TRMS.

OTHER FEATURES

  • Insulation resistance up to 15 TΩ;
  • Adjustable test voltage (50 V…5 kV) 50 V and 100 V step;
  • Programmable timer;
  • Capacitance measurement;
  • Charging rate for capacitive load < 1,5 s / µF at 5 kV;
  • Automatic discharge of test object after completion of measurement;
  • Guard terminal;
  • High voltage breakdown detection;
  • Custom defined tests;
  • Auto adjustment function;
  • Measurement  results in numerical and graphical form;
  • PC software HVLink PRO for downloading and analyzing of the test results and test report printing;
  • Isolated RS232 and USB communication ports, BT interface;
  • High quality accessories including shielded test leads in standard set;
  • High EM interferences protection: Input AC current noise rejection (1 [email protected] V) and additional averaging of the result (5, 10, 30, 60);
  • CAT IV / 600 V;
  • Increased working nominal altitude to 3000 m;
  • High power Li-ion battery pack (14.8V, 4.4Ah);
  • Mains and rechargeable battery power supply.

More info

For more information about MI3205 TERAOHM XA 5 KV insulation testers, click here.
