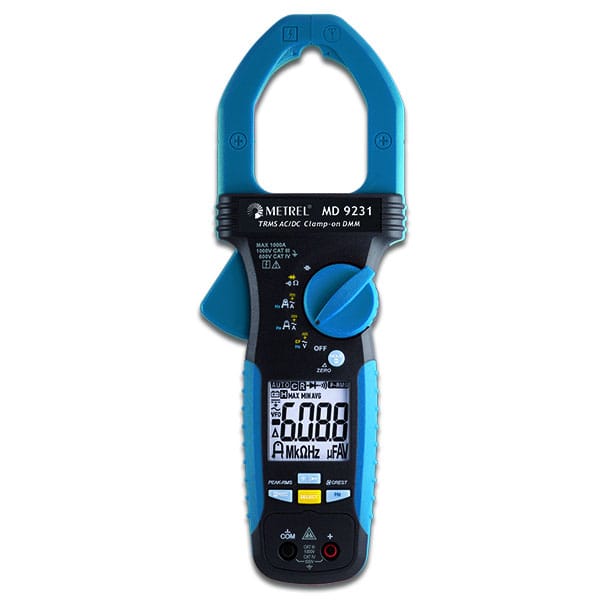

Metrel MD 9231 AC DC Current Clamps

CEPCO Sales are official distributors for Metrel MD 9231 AC-DC Current clamps in Saudi Arabia.

Metrel Brand Saudi Arabia

Description

The MD 9231 is an industrial TRMS AC and DC current clamp meter with a wide jaw opening and is capable of measuring currents up to 1000 A. It has the ability to measure capacitance and frequency and is equipped with a built-in VFD feature that makes the instrument capable of measuring the true values in accordance with frequency. The MD 9231 has a wide range of extra features, including peak value, data and MAX hold functions, auto power off, auto-ranging and a relative zero function. It uses state-of-the-art measurement technology and is housed in a sturdy industrial-grade case. It also has a flashlight for work in dark conditions.

MEASURING FUNCTIONS

  • DC and TRMS AC voltage measurement up to 1000 V;
  • DC and TRMS AC current measurement up to 1000 A;
  • Resistance measurement;
  • Acoustic continuity test;
  • Diode test;
  • Frequency measurement;
  • Capacitance measurement.

KEY FEATURES

  • Auto-ranging.
  • LCD display with backlight, 3-5/6 digit, 6000 count.
  • Flashlight.
  • Automatic, non-contact detection of electromagnetic fields to locate and trace live conductors.
  • Data hold function.
  • MIN/MAX/AVG function.
  • Relative zero.
  • 51 mm jaw opening.
  • CAT IV / 600 V, CAT III / 1000 V overvoltage categories.

APPLICATION

  • System maintenance;
  • Power system checking;
  • High level industrial testing;
  • High level electrical testing.
